MeasurementOffset

type MeasurementOffset =
  | { type: 'INNER'; relative: number }
  | { type: 'OUTER'; fixed: number }

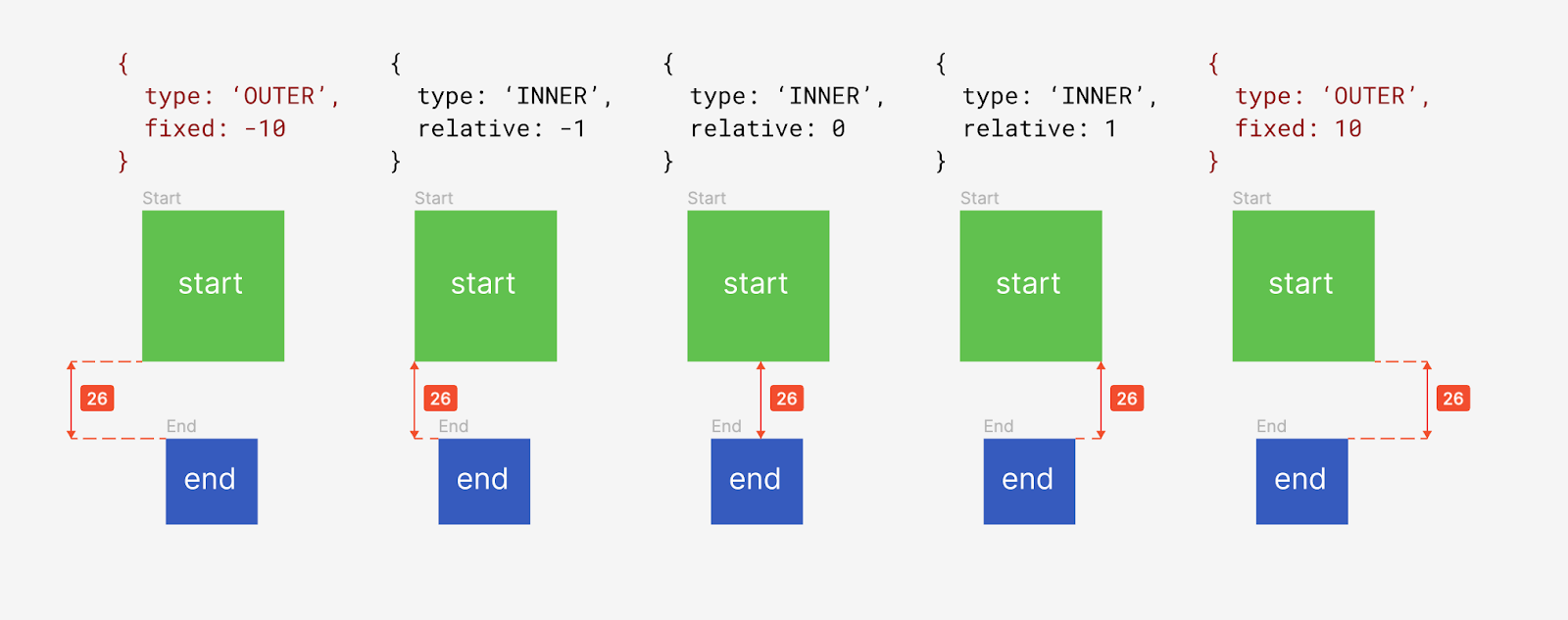

The offset of a Measurement. The offset field is relative to the start node’s center. It can either be:

• type 'INNER' where the field relative is between -1 and 1, indicating where along the node’s edge the measurement starts.
• type 'OUTER' where the node field fixed is the space between the measurement and the edge of the start node. The sign of the number determines which side it sticks out of. Its value must be non-zero (use type 'INNER' for an offset of 0).
